Description

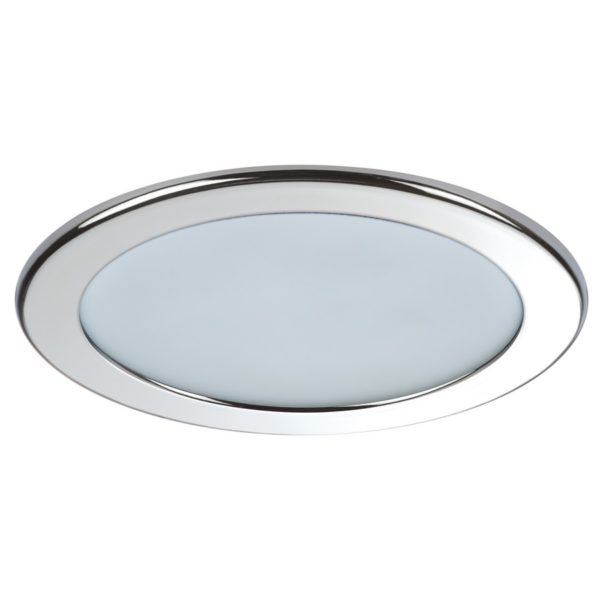

The Cristian is an IP40 recessed Power LED downlight. It has a 102mm round trim composed of AISI 316 stainless steel and a frosted lens. It is available with a daylight or warm LED bulb.
Specifications
Specifications
| Power type |
Constant Voltage |
| Light source |
2 x POWER LED |
| Supply |
10 ÷ 30 V |
| Power consumption |
7 W |
| Current consumption |
0.3 A @ 24 V |
| Average lifetime |
50,000 h |
| IP security degree |
40 |
Dimensions
| Frame |
Ø 4 1/64″ |
| Recess |
55 mm |
| Hole |
Ø 3 1/2″ |
Design
| Frame material |
AISI 316 S/STEEL |
| Finish |
MIRROR POLISHED |
| Light colors |
DAYLIGHT / WARM WHITE |
| Mounting |
SPRINGS |
Photometric data
| DAYLIGHT |
3800-4200 °K |
| Angle |
90° |
| Light flow |
394 lm |
| Efficiency |
57 lm/W |
| Light Beam- distance 1 m |
Ø 2.04 m |
169.6 lux |
| Light Beam- distance 2 m |
Ø 4.09 m |
42.4 lux |
| Light Beam- distance 3 m |
Ø 6.13 m |
18.8 lux |
| WARM WHITE |
2800-3100 °K |
| Angle |
90° |
| Light flow |
367 lm |
| Efficiency |
53 lm/W |
| Light Beam – distance 1 m |
Ø 2.03 m |
159.8 lux |
| Light Beam- distance 2 m |
Ø 4.05 m |
39.9 lux |
| Light Beam- distance 3 m |
Ø 6.08 m |
17.8 lux |
Certifications

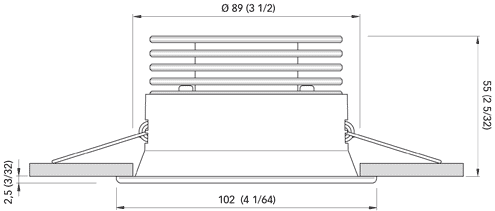

Dimensions in mm (inches)
DIMMERS
LDIM BUS 2CH
LDIM BUS 2CH
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
