QB-Twins
Dear Customer,
To place an order or request information, please contact us.
We will put you in touch with the distributor nearest you.
Description

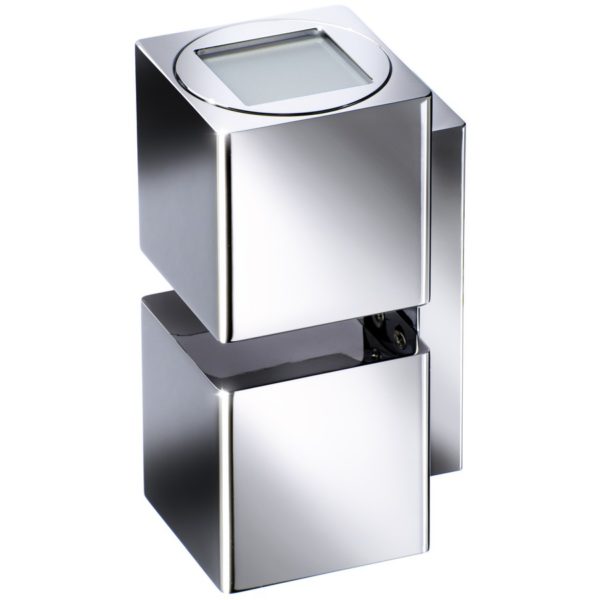

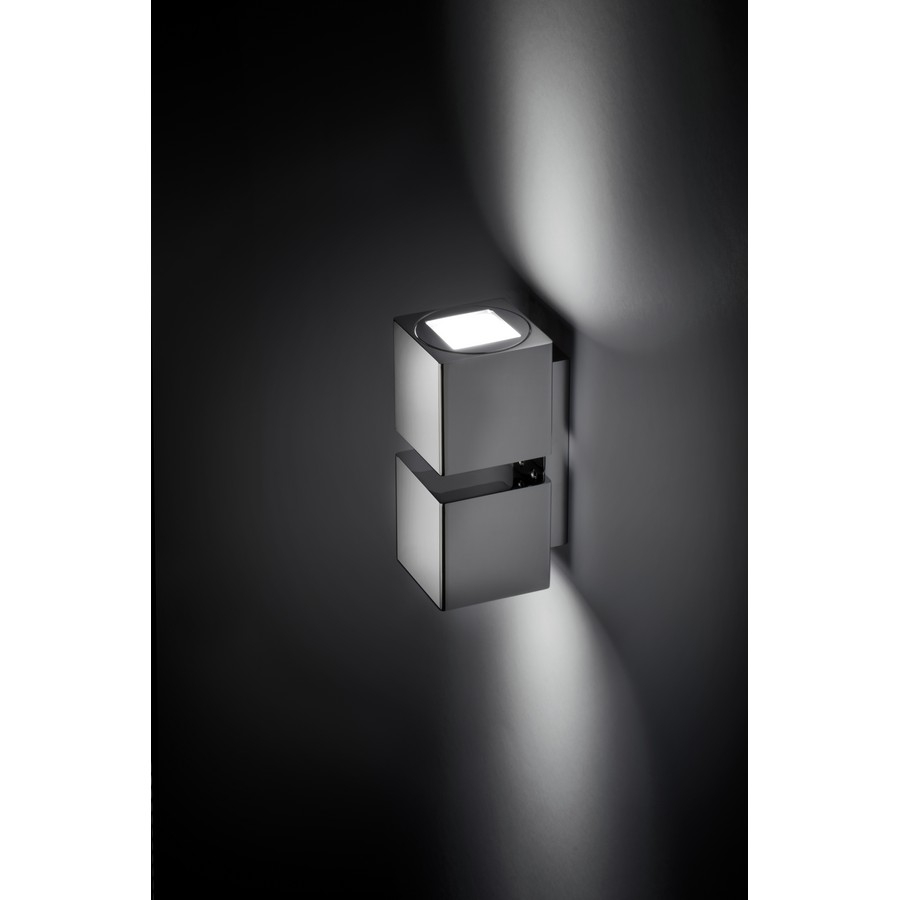

The QB-Twins is an IP40 fixed wall light. It is available with 2 lights in warm or daylight bulbs colors. It is composed of chromed aluminum for a nice polished finish.
Additional information
| Weight | N/A |
|---|---|

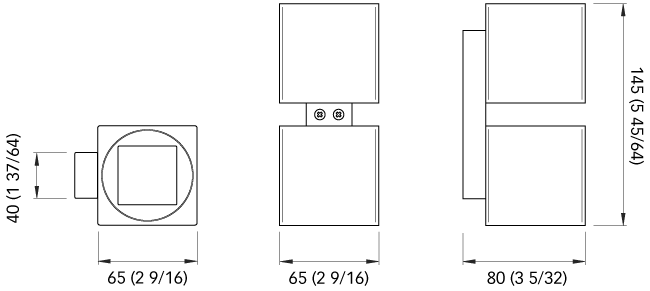

| Dimensions | 2 × 2 × 2 in |
| Light Color | 2+2W Daylight, 2+2W Warm, 4+4W Daylight, 4+4W Warm |
| Trim | Chrome |
Specifications
Specifications 2W
| Power type | Constant Voltage |
| Light source | 44 x LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 2+2 W |
| Current consumption | 0.15 A @ 24 V |
| Average lifetime | 50,000 h |
| Dimmable | Yes |
| IP security degree | 40 |
Design
| Frame material | ALUMINUM |
| Finish | CHROMED |
| Light colors | DAYLIGHT / WARM WHITE |
| Mounting | SCREWS |
Photometric data
| DAYLIGHT 2W | 3800-4200 °K | |
| Angle | 40° | |
| Light flow | 190 lm | |
| Efficiency | 48 lm/W | |
| Light Beam – distance 1 m | Ø 0.73 m | 134.7 lux |
| Light Beam- distance 2 m | Ø 1.45 m | 33.7 lux |
| Light Beam- distance 3 m | Ø 2.18 m | 15 lux |
| WARM WHITE 2W | 2800-3100 °K | |
| Angle | 40° | |
| Light flow | 170 lm | |
| Efficiency | 43 lm/W | |
| Light Beam – distance 1 m | Ø 0.73 m | 122.5 lux |
| Light Beam- distance 2 m | Ø 1.45 m | 30.6 lux |
| Light Beam- distance 3 m | Ø 2.18 m | 13.6 lux |
Specifications 4W
| Power type | Constant Voltage |
| Light source | 2 x POWER LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 4+4 W |
| Current consumption | 0.34 A @ 24 V |
| Average lifetime | 50,000 h |
| Dimmable | Yes |
| IP security degree | 40 |
Design
| Frame material | ALUMINUM |
| Finish | CHROMED |
| Light colors | DAYLIGHT / WARM WHITE |
| Mounting | SCREWS |
Photometric data
| DAYLIGHT 4W | 3800-4200 °K | |
| Angle | 40° | |
| Light flow | 372 lm | |
| Efficiency | 47 lm/W | |
| Light Beam – distance 1 m | Ø 0.7 m | 212 lux |
| Light Beam- distance 2 m | Ø 1.41 m | 53 lux |
| Light Beam- distance 3 m | Ø 2.11 m | 23.6 lux |
| WARM WHITE 4W | 2800-3100 °K | |
| Angle | 40° | |
| Light flow | 358 lm | |
| Efficiency | 45 lm/W | |
| Light Beam- distance 1 m | Ø 0.7 m | 203.9 lux |
| Light Beam- distance 2 m | Ø 1.41 m | 51 lux |
| Light Beam – distance 3 m | Ø 2.11 m | 22.7 lux |
Certifications
   |
LED Protection: Spike protected ± 500V Polarity sensitive: YES
