Kai XP HP 6W
Dear Customer,
To place an order or request information, please contact us.
We will put you in touch with the distributor nearest you.
Description
The Kai XP HP 6W is an IP66 recessed Power LED downlight. It has an 82mm round trim composed of AISI 316 stainless steel and a frosted lens.
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 0.25 × 0.25 × 0.25 in |
| Bulb Color | Daylight, Warm, Warm/Red, Warm/Blue, QCC, Red, Blue, Daylight/Red, Daylight/Blue, Daylight/Red |
| Trim Finish | White, Satin, Stainless Steel |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | 2 X POWER LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 6 W |
| Current consumption | 0.25 A @ 24V |
| Average lifetime | 50,000 h |
| Dimmable | Yes |
| IP security degree | 66 |
Dimensions
| Frame | SQ; 3 7/32″ |
| Recess | 1 3/16″ |
| Hole | Ø 2 9/16″ |
Design
| Frame material | AISI 316 S/STEEL |
| Finish | MIRROR POLISHED / WHITE 9010 |
| Light colors | DAYLIGHT / WARM WHITE |
| Mounting | SPRINGS |
| DAYLIGHT | 3800-4200 °K | |
| Angle | 70° | |
| Light flow | 410 lm | |
| Efficiency | 49 lm/W | |
| Light Beam – distance 1 m | Ø 1.48 m | 263.4 lux |
| Light Beam- distance 2 m | Ø 2.97 m | 65.9 lux |
| Light Beam- distance 3 m | Ø 4.45 m | 29.3 lux |
| WARM WHITE | 2800-3100 °K | |
| Angle | 70° | |
| Light flow | 315 lm | |
| Efficiency | 46 lm/W | |
| Light Beam – distance 1 m | Ø1.48 m | 193.8 lux |
| Light Beam- distance 2 m | Ø 2.97 m | 48.4 lux |
| Light Beam- distance 3 m | Ø 4.45 m | 21.5 lux |
Certifications
   |

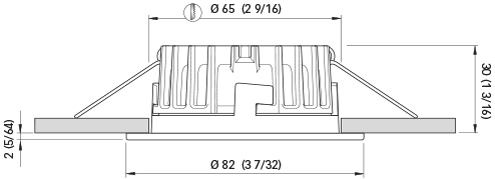

Dimensions in mm (inches)
DIMMERS
LDIM BUS 2CH
LDIM BUS 2CH
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
