Ely 1.5W 40°

$152.73$177.87

Description

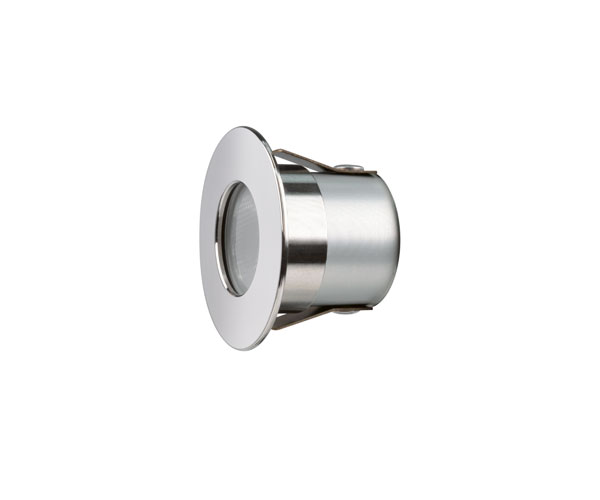

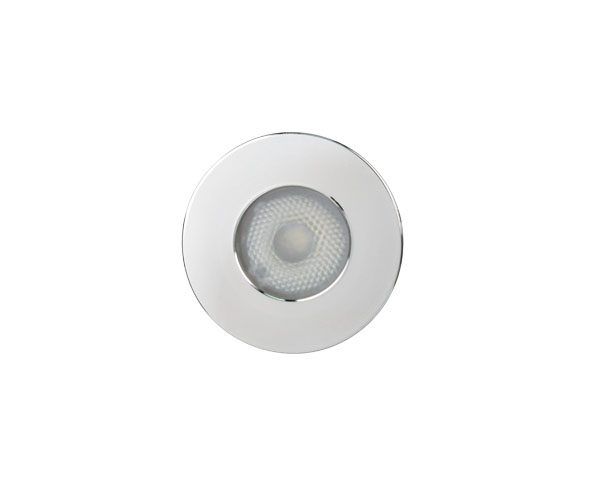

The Ely is an IP65 built in led courtesy light. It has a 39.5mm round trim composed of AISI stainless steel. This unit is available in warm and daylight led bulb colors. It is suitable for ceiling and wall installation with an effective illumination and optimal chromatic yield.

Additional information

Weight .25 lbs
Dimensions 0.25 × 0.25 × 0.25 in
Bulb Color

Warm, Daylight

Trim Finish

White, Satin, Stainless Steel

Specifications

Dimmable  DAYLIGHTWARM WHITE

Specifications

Power type Constant Voltage
Light source LED
Supply 10 ÷ 30 V
Power consumption 1.5 W
Current consumption 0.06 A @ 24 V
Average lifetime 50,000 h
Dimmable Yes
IP security degree 65

Dimensions / Weight

Frame Ø 1 9/19″
Recess 1 1/16″
Hole Ø 1 3/16″
Weight 60 gr

Design

Frame material AISI 316 S/STEEL
Finishings BLACK PVD / GOLD PVD
Light colors DAYLIGHT / WARM WHITE
Mounting SPRINGS

Photometric data

DAYLIGHT
3800-4100 °K
CRI ≥ 80
Angle 40°
Light flow 100 lm
Lightness – distance 1 m Ø 0.69 m 165.8 lux
Lightness – distance 2 m Ø 1.39 m 41.4 lux
Lightness – distance 3 m Ø 2.08 m 18.4 lux
WARM WHITE
2900-3100 °K
CRI ≥ 90
Angle 40°
Light flow 90 lm
Lightness – distance 1 m Ø 0.69 m 150.72 lux
Lightness – distance 2 m Ø 1.39 m 37.68 lux
Lightness – distance 3 m Ø 2.08 m 16.75 lux
WARM WHITE
2900-3100 °K
CRI ≥ 90
Angle 40°
Light flow 92 lm
Lightness – distance 1 m Ø 0.69 m 150.72 lux
Lightness – distance 2 m Ø 1.39 m 37.68 lux
Lightness – distance 3 m Ø 2.08 m 16.75 lux

Certifications

LED Protection: Spike protected ± 500V
