Edwin C Dual 2+2W IP66
$87.77 – $87.79
Description
The Edwin C Dual is an IP66 recessed Power LED downlight. It has an 72mm round trim composed of AISI 316 stainless steel and a frosted lens.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 0.25 × 0.25 × 0.25 in |
| Bulb Color | Warm/Red, DaylightRed, WarmBlue, DaylightBlue |
| Trim Finish | Stainless Steel, Satin, White |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | HIGH LUMINOSITY |
| Supply | 10 ÷ 30 V |
| Power consumption | 2 W |
| Current consumption | 0.09 A @ 24V |
| Average lifetime | 50,000 h |
| IP security degree | 40 |
Dimensions
| Frame | Ø 2 53/64″ |
| Recess | 5/8″ |
| Hole | Ø 2 1/8″ |
Design
| Frame material | AISI 316 S/STEEL |
| Finish | MIRROR POLISHED / SATIN / WHITE 9010 |
| Light colors | DAYLIGHT / WARM WHITE |
| Mounting | SPRINGS |
Photometric data
| DAYLIGHT | 3800-4200 °K | |
| Angle | 100° | |
| Light flow | 115 lm | |
| Efficiency | 58 lm/W | |
| Light Beam – distance 1 m | Ø 2.43 m | 44.4 lux |
| Light Beam- distance 2 m | Ø 4.85 m | 11.1 lux |
| Light Beam- distance 3 m | Ø7.28 m | 4.9 lux |
| WARM WHITE | 2800-3100 °K | |
| Angle | 100° | |
| Light flow | 105 lm | |
| Efficiency | 53 lm/W | |
| Light Beam – distance 1 m | Ø 2.43 m | 40.8 lux |
| Light Beam- distance 2 m | Ø 4.85 m | 10.2 lux |
| Light Beam- distance 3 m | Ø 7.28 m | 4.5 lux |
Certifications
   |

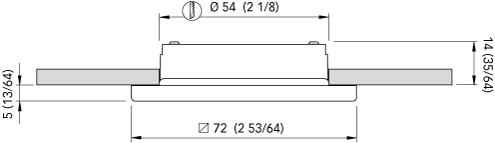

Dimensions in mm (inches)
DIMMERS
LDIM BUS 2CH
LDIM BUS 2CH
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
