Bryan C Dual 2+2W IP40

$79.00$84.00

Clear

Description

The Bryan Club Dual is an IP40 recessed Power LED downlight. It has an 72mm round trim composed of AISI 316 stainless steel and a frosted lens.

Additional information

Weight N/A
Dimensions 0.25 × 0.25 × 0.25 in
Bulb Color

Warm/Red, Warm/Blue, Daylight/Red, Daylight Blue

Trim Finish

White, Satin, Stainless Steel

Specifications

Specifications

Power type Constant Voltage
Light source HIGH LUMINOSITY
Supply 10 ÷ 30 V
Power consumption 2 W
Current consumption 0.09 A @ 24V
Average lifetime 50,000 h
IP security degree 40

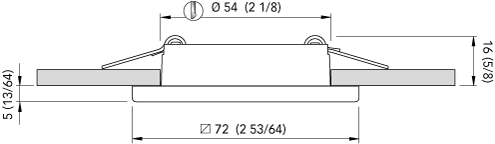

Dimensions

Frame Ø 2 53/64″
Recess 51/64″
Hole Ø 2 1/8″

Design

Frame material AISI 316 S/STEEL
Finish MIRROR POLISHED / SATIN / WHITE 9010
Light colors DAYLIGHT / WARM WHITE
Mounting SCREWS

Photometric data


 DAYLIGHT 3800-4200 °K
Angle 95°
Light flow 190 lm
Efficiency 48 lm/W
Light Beam – distance 1 m Ø 2.11 m 87.2 lux
Light Beam- distance 2 m Ø 4.21 m 21.8 lux
Light Beam- distance 3 m Ø 6.32 m 9.7 lux

 WARM WHITE 2800-3100 °K
Angle 95°
Light flow 180 lm
Efficiency 45 lm/W
Light Beam – distance 1 m Ø 2.11 m 80.7 lux
Light Beam- distance 2 m Ø 4.21 m 20.2 lux
Light Beam- distance 3 m Ø 6.32 m 9 lux

Certifications

LED Protection: Spike protected ± 500V Polarity sensitive: YES
