Tab SSR1
Dear Customer,
To place an order or request information, please contact us.
We will put you in touch with the distributor nearest you.
Description

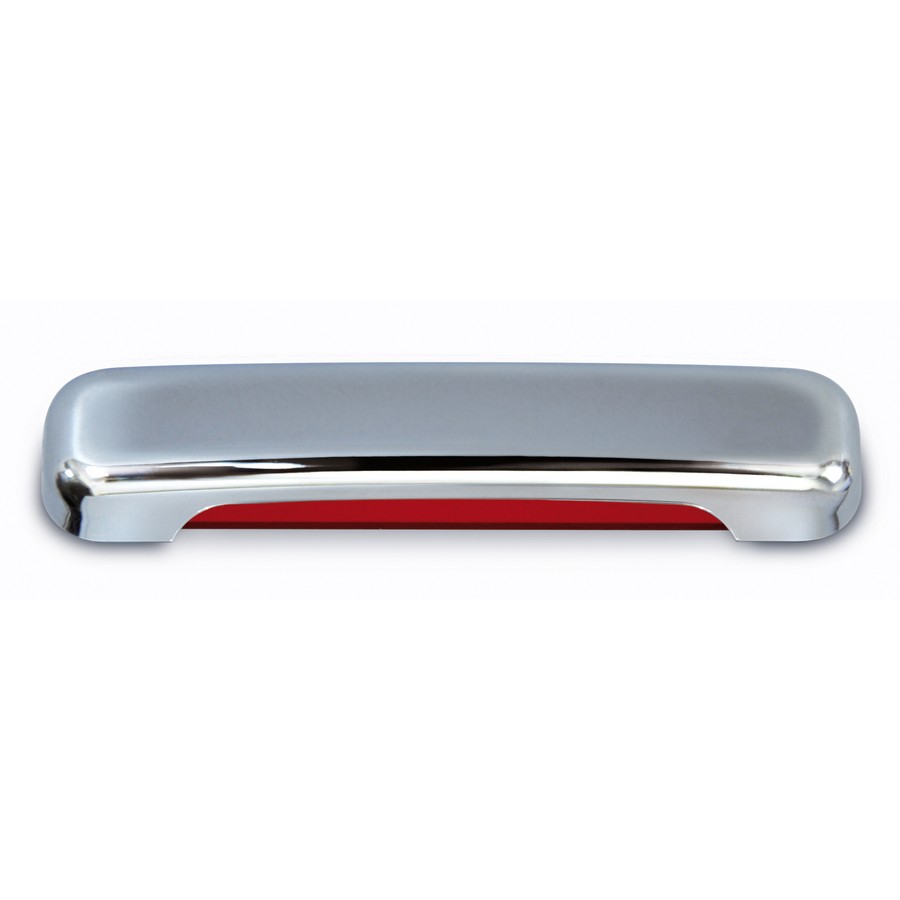

The Tab is an IP65 LED courtesy light. It has a 68mm x14mm rectangular cover composed of AISI stainless steel and UV stabilized techno-polymer. This unit is available in daylight, blue, and red led bulb colors.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 0.25 × 0.25 × 0.25 in |
| Light Color | Daylight, Red, Blue |
| Trim | Stainless Steel |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | 4 x LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 1 W @ 24 V |
| Current consumption | 0.04 A |
| Average lifetime | 50,000 h |
| IP security degree | 65 |
Dimensions
| Frame | RECT. 2 21/32″ x 17/32″ |
| Recess | 5/16″ (Thickness) |
Design
| Frame material | AISI 316 S/STEEL |
| Finish | MIRROR POLISHED |
| Light colors | DAYLIGHT / RED / BLU |
| Mounting | SCREWS |
Certifications
   |
Dimensions in mm (inches)
LED Protection: Spike protected ± 500V Polarity sensitive: YES
