VRS Voltage Reducer

$150.00$205.00

Clear

Description

The Quick VRS is a switching voltage reducer used to guarantee electrical separation of the 12 and 24 volt electrical systems. Important advantages of this unit are the electrical insulation between the input and output and low residual output fluctuation (ripple lower than 50 mV RMS). Additional safety features include protections against short circuits, output overvoltage, and reverse output polarity. This unit is sold complete with the voltage reducer and product sheet.

Model VRS 10
Maximum output current (1) 8 A
Maximum output load (2) 10 A
Rated output voltage 13,5 Vdc ± 0,5 Vdc
Output voltage stability 1%
Residual ripple 30mV max RMS
Supply voltage 20 ÷ 30 Vdc
Maximum absorption 8.3 A
Cooling Natural
Case material Aluminum

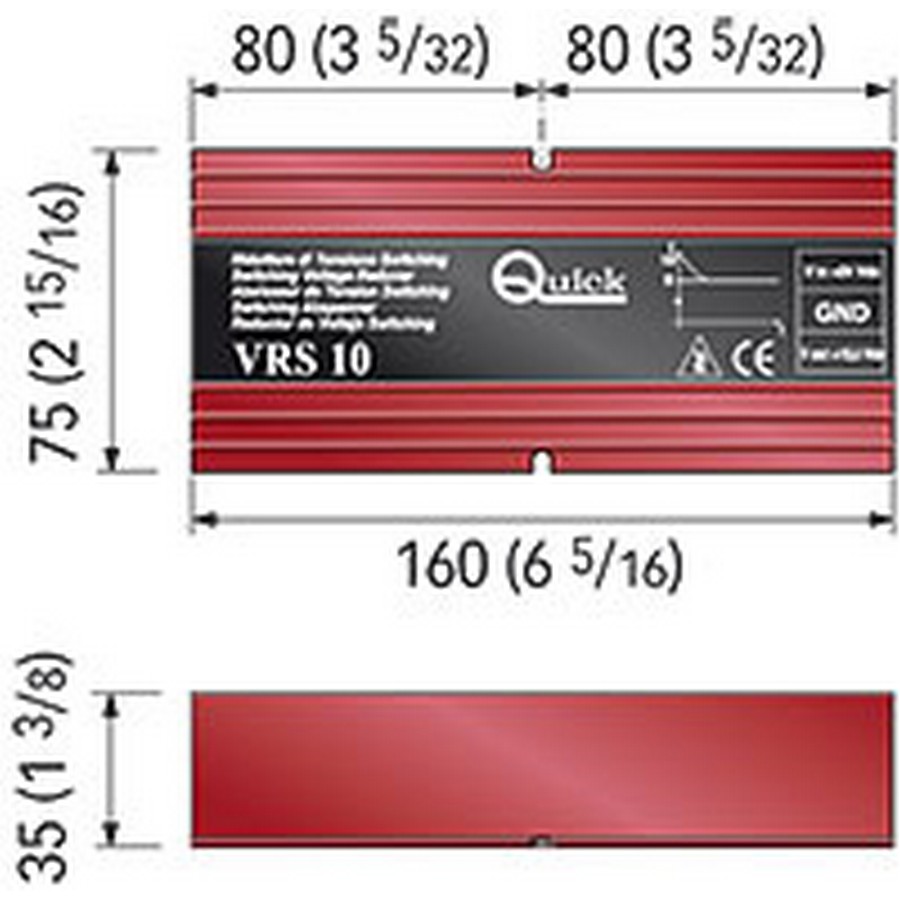

Dimensions  W x H x D – inch 160 x 75 x 35 mm
6″5/16x 2″15/16 x 1″3/8
Weight – lb 390 g
0,86 lb



Model VRS 16
Maximum output current (1) 12 A
Maximum output load (2) 16 A
Rated output voltage 13,5 Vdc ± 0,5 Vdc
Output voltage stability 1%
Residual ripple 30mV max RMS
Supply voltage 20 ÷ 30 Vdc
Maximum absorption 11,9 A
Cooling Natural
Case material Aluminum

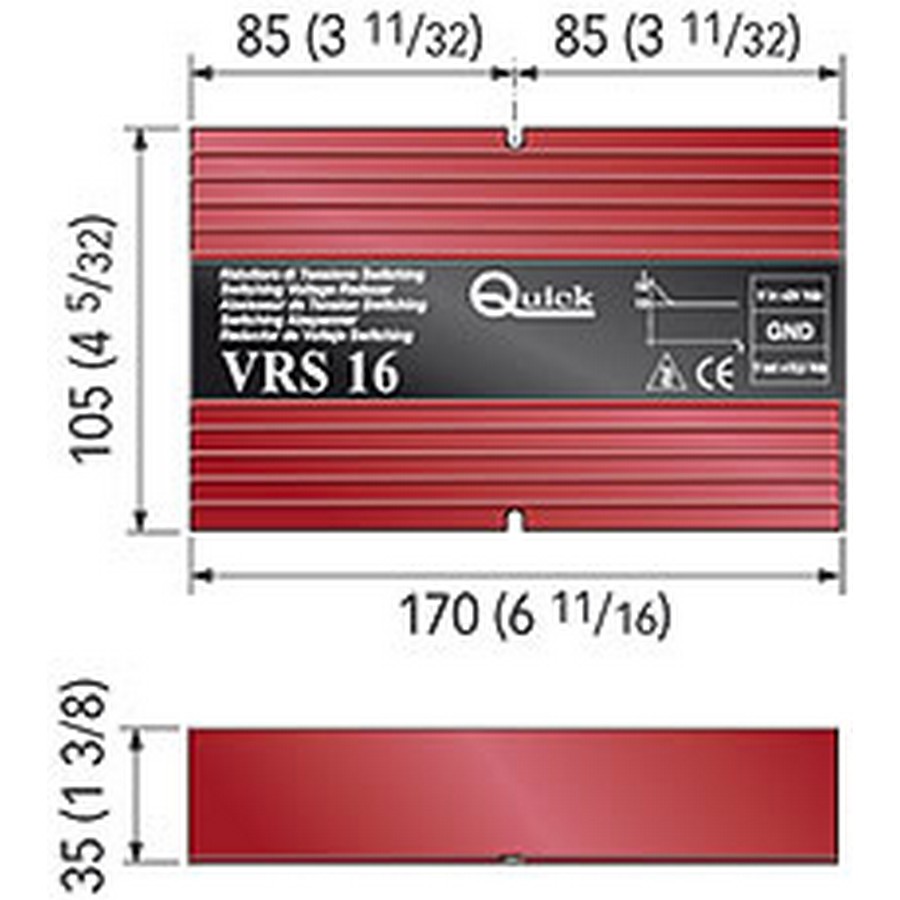

Dimensions  W x H x D – inch 170 x 105 x 35 mm
6″11/16 x 4″5/32 x 1″3/8
Weight – lb 550 g
1,2 lb



Model VRS 23
Maximum output current (1) 18 A
Maximum output load (2) 23 A
Rated output voltage 13,5 Vdc ± 0,5 Vdc
Output voltage stability 1%
Residual ripple 30mV max RMS
Supply voltage 20 ÷ 30 Vdc
Maximum absorption 17,8 A
Cooling Natural
Case material Aluminum

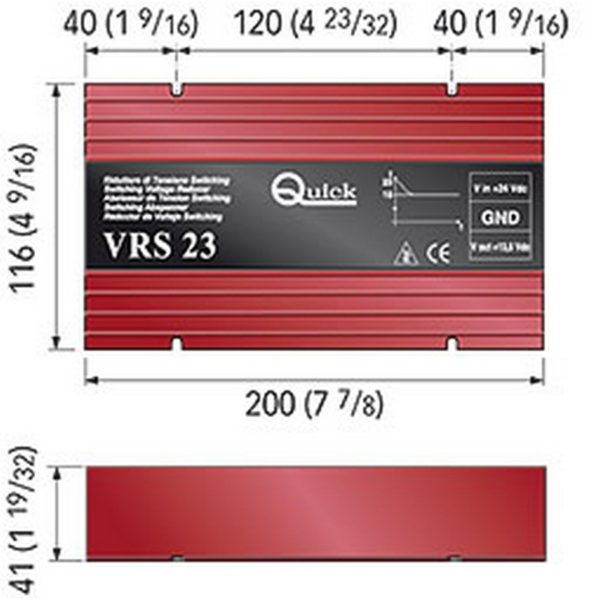

Dimensions  W x H x D – inch 200 x 116 x 41 mm
7″7/8 x 4″9/16 x 1″19/32
Weight – lb 780 g
1,72 lb



Additional information

Weight N/A
Dimensions 0.25 × 0.25 × 0.25 in
Model

VRS10 24/12V 10A, VRS16 24/12V 16A, VRS23 24/12V 23A

Specifications

Model
VRS 10 VRS 16 VRS 23 VRS 30
Maximum output current (1)  8:00 AM 12:00 AM 18 A 25 A
Maximum output load (2) 10:00 AM 16 A 23 A 30 A
Rated output voltage 13,5 Vdc ± 0,5 Vdc 13,5 Vdc ± 0,5 Vdc 13,5 Vdc ± 0,5 Vdc 13,5 Vdc ± 0,5 Vdc
Output voltage stability 1% 1% 1% 1%
Residual ripple 50mV max RMS 50mV max RMS 50mV max RMS 50mV max RMS
Supply voltage 20 ÷ 30 Vdc 20 ÷ 30 Vdc 20 ÷ 30 Vdc 20 ÷ 30 Vdc
Maximum absorption 7,5 A 12,5 A 18,5 A 22,2 A
Cooling Natural Natural Natural Natural
Case material Aluminium Aluminium Aluminium Aluminium
Dimensions  W x H x D – inch 6″3/4 x 2″3/8 x   1″ 6″3/4 x 3″17/32 x   1″ 7″7/8 x 3″15/16 x   1″3/8 7″13/32 x 10″ x   2″11/16
Weight –   lb 0,71 lb 1,1 lb 1,57 lb 3,75 lb
