Tumbler Capstan

$2,014.65 – $25,395.56

SKU: TUMBLER - Category:

Description

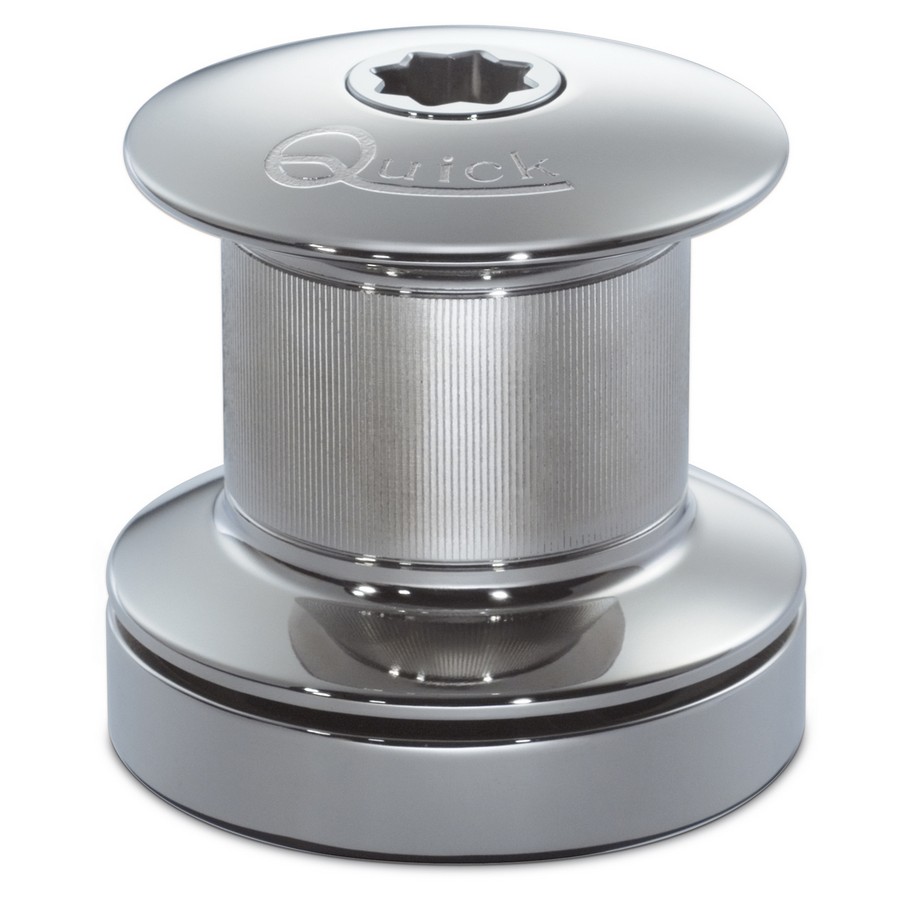

The Tumbler is a capstan with a horizontal mounted motor below the deck. This unit comes equipped with an IP67 watertight motor and anodized aluminum gearbox. The drum and base are composed of AISI 316 stainless steel. This unit is sold complete with the capstan, solenoid unit, clutch handle, mounting hardware, and users manual.



For   boats from 6 to 13 meters (20 – 43 ft)
Tumbler 500 W 6 – 9 m 20 – 30 ft
Tumbler 700 W 7 – 10 m 23 – 33 ft
Tumbler S 1000 W 10 – 13 m 33 – 43 ft



For boats from 14 to 34 meters (46 – 112 ft)
Tumbler L 1000 W 14 – 18 m 46 – 59 ft
Tumbler 1400 W 16 – 22 m 52 – 72 ft
Tumbler 1700 W 18 – 24 m 59 – 79 ft
Tumbler 2000 W 20 – 28 m 66 – 92 ft
Tumbler 2300 W 24 – 30 m 79 – 98 ft
Tumbler 3000 W 26 – 34 m 85 – 112 ft

Additional information

Weight N/A
Dimensions 17 × 17 × 11 in
Wattage

500W, 700W, 1000W, 1500W, 1700W, 2000W, 2300W, 3000W, 3500W
Voltage

12V, 24V

Specifications

Standard version

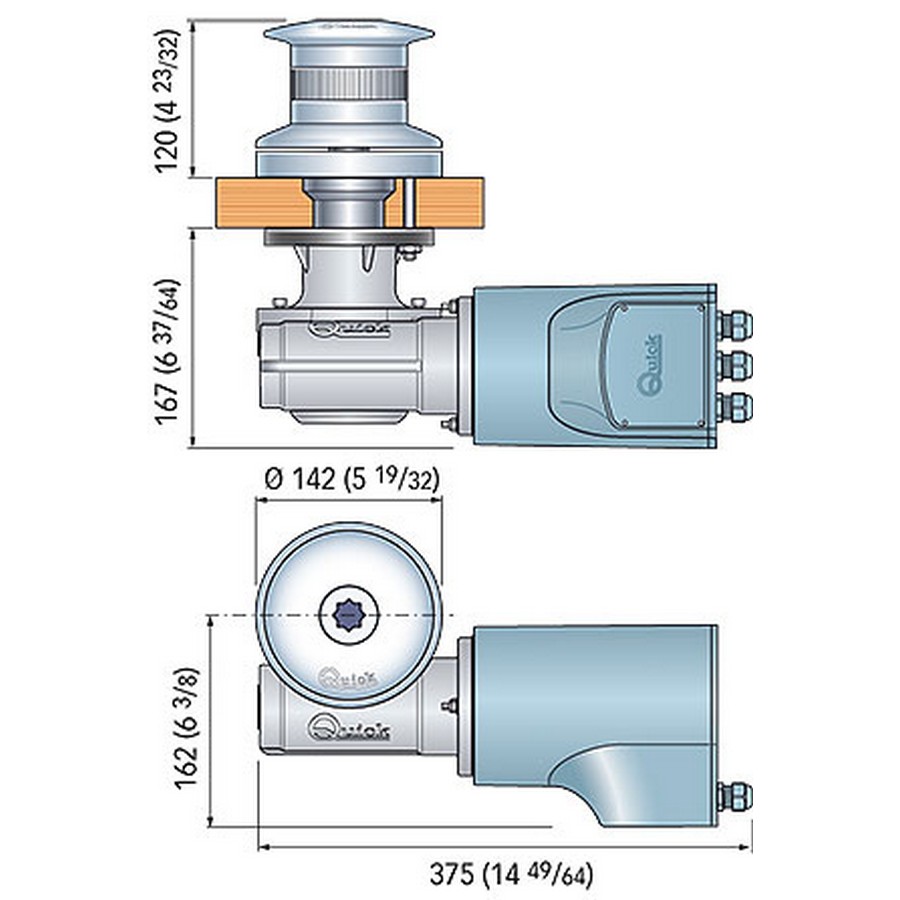

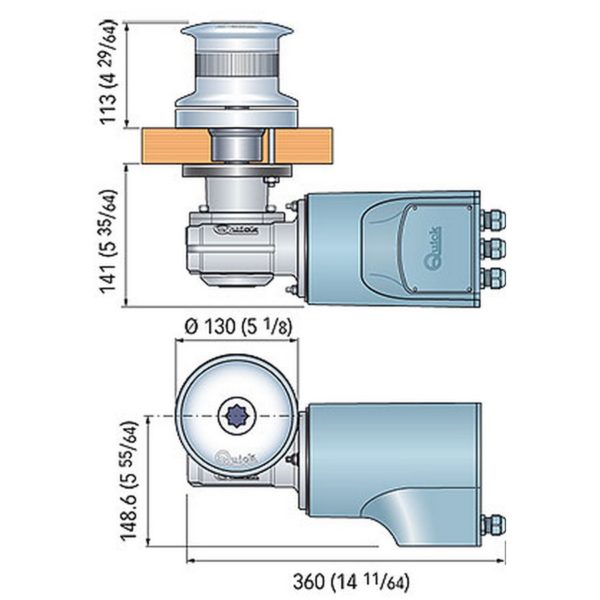

 Tumbler 500 Tumbler 700 Tumbler 1000 S Tumbler 1000 L
Motor   power 500 W 700 W 1000 W 1000W
Motor   supply voltage 12 V 24 V 12 V 24 V 12 V 24 V 12 V 24 V
Maximum   pull 1455 lb 1455 lb 1874 lb 1874 lb 2205 lb 2205 lb 2205 lb 2205 lb
Maximum   working load 441 lb 460 lb 551 lb 661 lb 815 lb 992 lb 815 lb 992 lb
Working   load 143 lb 154 lb 176 lb 220 lb 264.5 lb 330.7 lb 264.5 lb 330.7 lb
Current   absorbtion @ working load (1) 80 A 40 A 90 A 55 A 140 A 80 A 140 A 80 A
Maximum   chain speed (2) 62 ft/min 62 ft/min 69 ft/min 66 ft/min 99 ft/min 109 ft/min 130 ft/min 134 ft/min
Maximum chain speed @ working load (2) 45 ft/min 47 ft/min 36 ft/min 44 ft/min 51 ft/min 54 ft/min 67 ft/min 70 ft/min
Drum Ø 4” 9/64 4” 9/64 5” 1/8 5” 1/8 5” 1/8 5” 1/8 5” 19/32 5” 19/32
Weight 16 lb 16 lb 32.2 lb 32.2 lb 34.16 lb 34.16 lb 41.5 lb 41.5 lb





Standard version

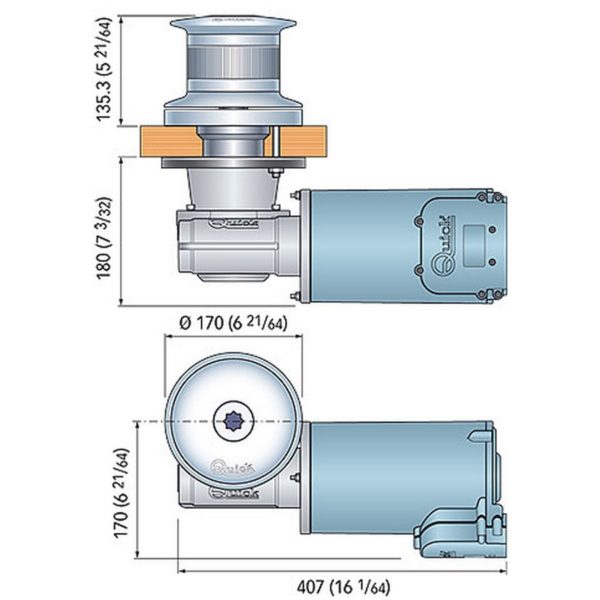

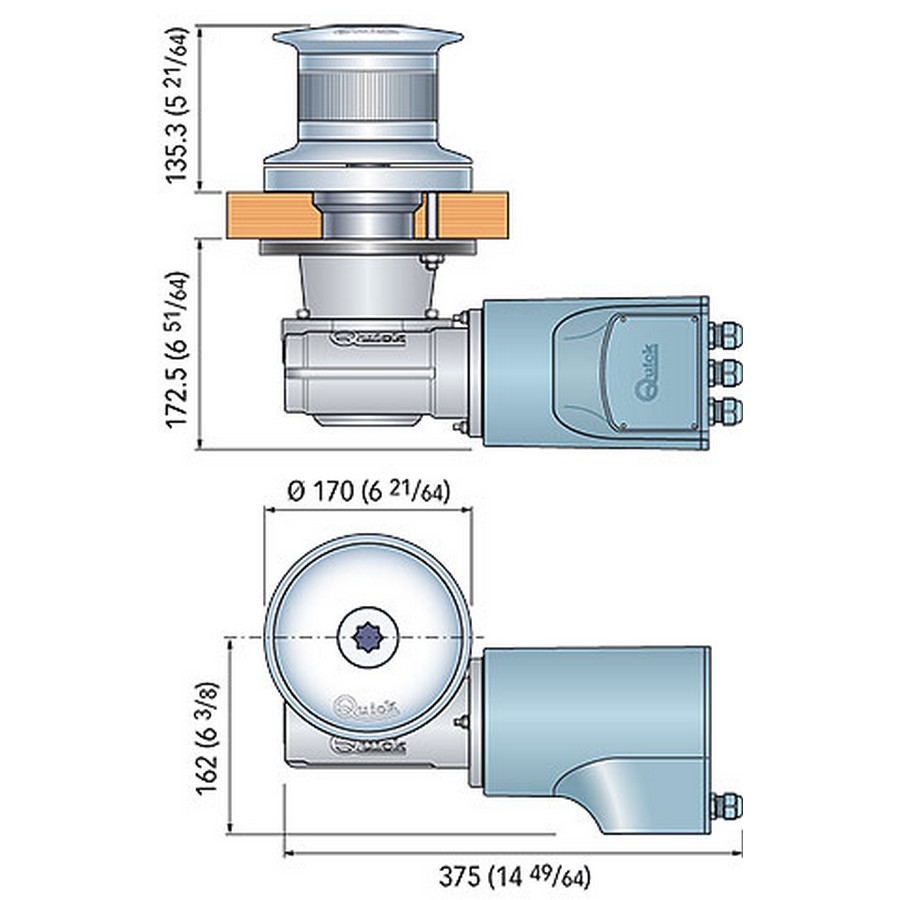

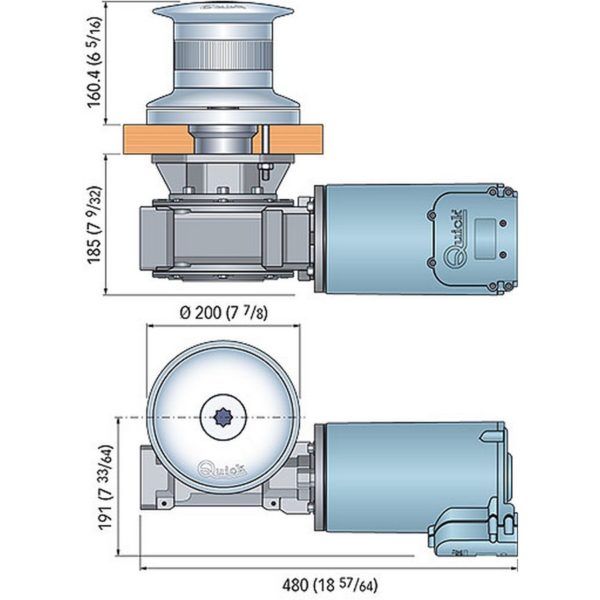

 Tumbler 1500 Tumbler 1700 Tumbler 2000 Tumbler 2300 Tumbler 3000
Motor   power 1500 W 1700 W 2000 W 2300 W 3000 W
Motor   supply voltage 12 V 24 V 24 V 24 V 24 V 24 V
Maximum   pull 2425 lb 2425 lb 2646 lb 2650 lb 5300 lb 6840 lb
Maximum   working load 992 lb 1100 lb 1257 lb 1653 lb 1880 lb 2650 lb
Working   load 330.7 lb 374.8 lb 419 lb 551 lb 630 lb 883 lb
Current   absorbtion @ working load (1) 155 A 85 A 100 A 115 A 120 A 145 A
Maximum   chain speed (2) 108 ft/min 97 ft/min 118 ft/min 126 ft/min 129 ft/min 120 ft/min
Maximum chain speed @ working load (2) 57 ft/min 67 ft/min 60 ft/min 64 ft/min 72 ft/min 61 ft/min
Drum Ø 5″ 19/32 5″ 19/32 6” 21/64 6” 21/64 7” 7/8 7” 7/8
                                  Weight 46.5 lb 46.5 lb 62 lb 72 lb 82 lb 109 lb
