Thor Capstan
$2,030.00 – $2,840.00
Description

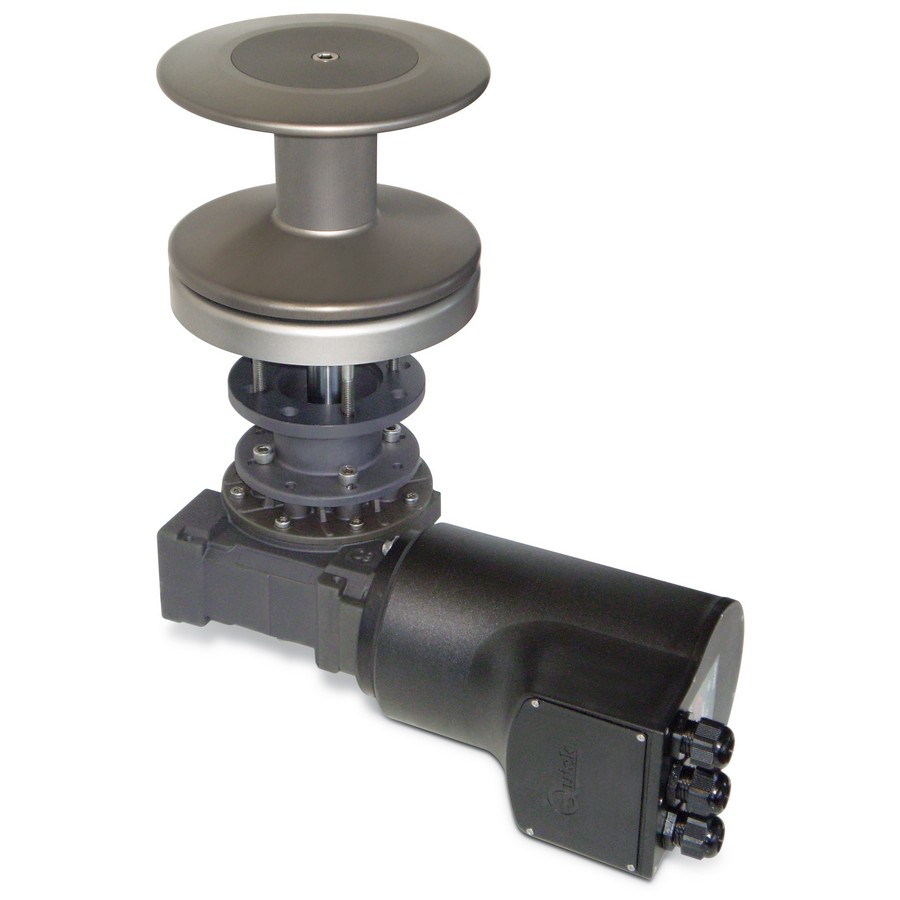

The Thor is a capstan with a horizontally mounted motor below the deck. This unit comes equipped with an IP67 watertight motor and anodized aluminum gearbox. The drum is composed of anodized aluminum in hard oxide and the base is composed of aluminum. This unit is sold complete with the capstan, solenoid unit, clutch handle, mounting hardware, and users manual.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 17 × 17 × 11 in |
| Wattage | 700W, 1000W, 1400W |
| Voltage | 12V, 24V |
Specifications
|
Standard version
|
Thor 700 | Thor 1000 | Thor 1400 | |||
| Motor power | 700 W | 1000 W | 1000 W | |||
| Motor supply voltage | 12 V | 24 V | 12 V | 24 V | 12 V | 24 V |
| Maximum pull | 1874 lb | 1874 lb | 2205 lb | 2205 lb | 2425 lb | 2425 lb |
| Maximum working load | 551 lb | 661 lb | 815 lb | 992 lb | 992 lb | 1102 lb |
| Working load | 176 lb | 220 lb | 264.5 lb | 330.7 lb | 330.7 lb | 374.8 lb |
| Current absorbtion @ working load (1) | 90 A | 55 A | 140 A | 80 A | 155 A | 85 A |
| Maximum chain speed (2) | 48.5 ft/min | 50.8 ft/min | 73.2 ft/min | 84.0 ft/min | 55.1 ft/min | 57.1 ft/min |
| Maximum chain speed @ working load | 27.2 ft/min | 27.9 ft/min | 38.7 ft/min | 39.7 ft/min | 32.1 ft/min | 36.7 ft/min |
| Drum Ø | 7” 1/2 | 7” 1/2 | 7” 1/2 | 7” 1/2 | 7” 1/2 | 7” 1/2 |
| Weight | 31.3 lb | 31.3 lb | 34.2 lb | 34.2 lb | 40.8 lb | 40.8 lb |
