Sigmar Water Heater UX Compact Inox

$1,357.62

Description

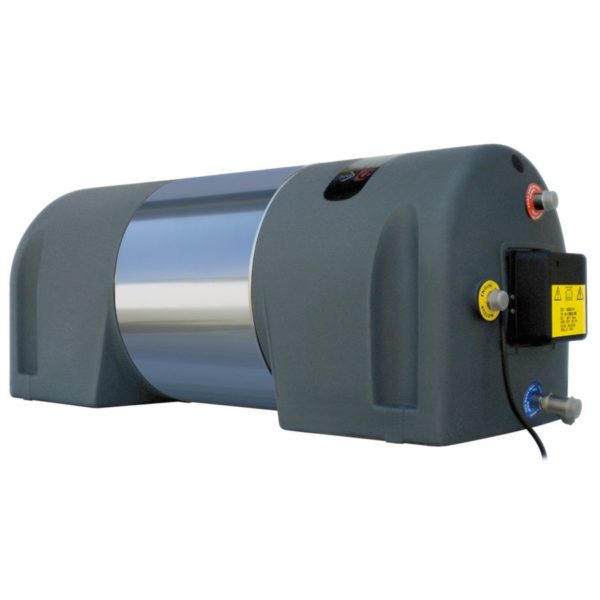

The Sigmar Model is a Compact water heater that produces water from an incoloy electric heating element that is fitted with an adjustable safety bi-thermostat. This unit is equipped with a heat exchanger composed of AISI 316L stainless steel with a capacity that is notably higher than that achieved from other manufacturers. The interior of the tank is made of 1.5 mm gauge AISI 316 stainless steel welded with Argon shielding gas which enables it to be highly resistant to corrosive agents. The exterior of the tank is composed of a highly durable plastic composite material with integrated mounting brackets. The unit has thermal insulation composed of high density polyurethane foam which is injected between the cover and tank thus providing excellent heat retention properties. This unit comes equipped with the Water heater, Mounting Brackets, and 4 brass fittings.

Additional information

Weight N/A
Dimensions 24 × 16 × 16 in
Series

Wattage

1200W, 800W

Voltage

110V, 220V

Specifications

Compact   Inox Series Capacity Dimensions Weight Resistance 220 /110 V
L Gal. Unit of Measure Width Length Height Kg lb Watt
B030 UX 30 8 mm 366 540 358 9,5 19 800
inch 14” 1/3 21” 1/3 14” 1/8
B040 UX 40 10 1/2 mm 366 660 358 11,5 23 800
inch 4” 1/3 26” 14” 1/8
B060 UX 60 16 mm 366 875 358 15 30 800
inch 14” 1/3 34” 1/2 14”1/8
B080 UX  80 21 mm 417 955 410 22 44 1200
inch 16”1/3 36” 1/3 15”2/3
