BXS 25L Square Water Heater

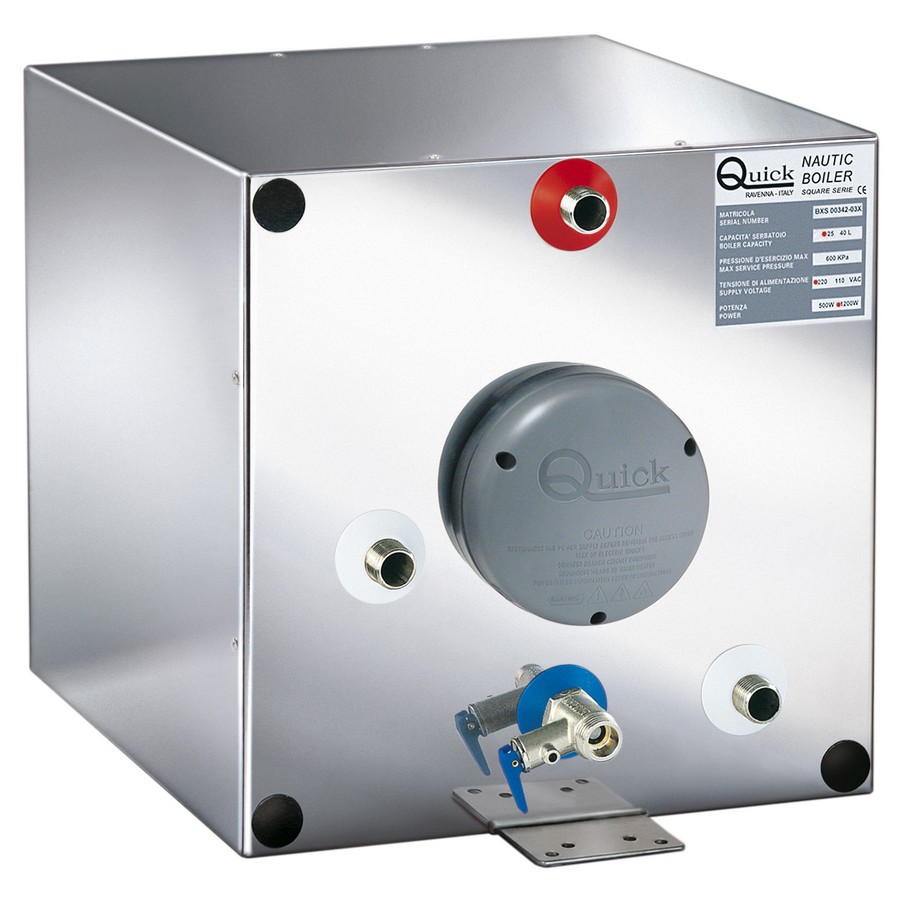

The Quick Model BXS is a square water heater. This unit produces water from an incoloy electric heating element that is fitted with an adjustable safety bi-thermostat. This unit is equipped with a heat exchanger composed of AISI 316L stainless steel with a capacity that is notably higher than that achieved from other manufacturers. The interior of the tank is made of 1.5 mm gauge AISI 316 stainless steel welded with Argon shielding gas which enables it to be highly resistant to corrosive agents. The exterior of the tank is composed of a sleek looking 304 AISI stainless steel. The unit has a thermal insulation composed of high density polyurethane foam which is injected between the cover and tank thus providing excellent heat retention properties. Thanks to the square design this unit is perfect for installation in small spaces. This unit comes equipped with the Water heater, Mounting Brackets, and 4 brass fittings.

Additional information

Weight N/A

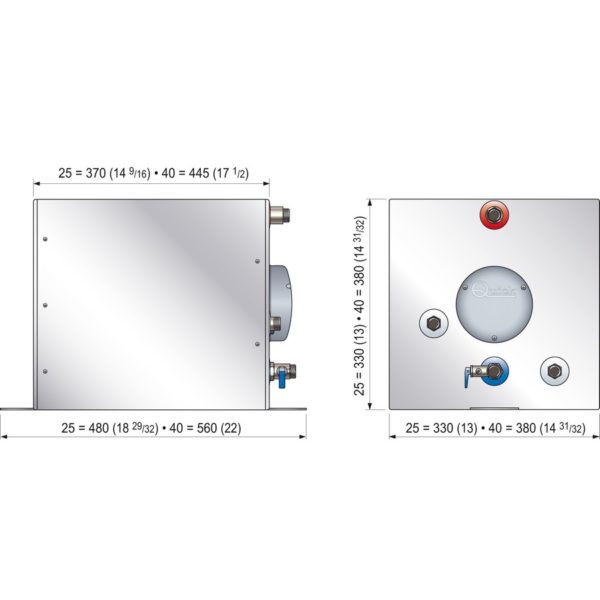

Dimensions 19 × 19 × 34 in


500W, 1200W


110V, 220V


BXS 25 BXS 40
Tank   capacity – L 25 L 40 L
Tank   material Stainless steel
Thermal insulating Polyurethane foam
External   cladding material Stainless steel
Tank   pressure (running test) 800 kPa (1)
Maximum   working pressure 600 kPa (1)
Electric   element voltage rating (2) (3) 220 Vac ± 10% – (110   Vac ± 10%)
Electric   element power (2) (3) 500 W [Mod. 05] – 600 W [Mod. 06] (5) – 1200 W [Mod.   12]
Outputs   diameter 1/2”
Weight   with exchanger (4) – lb 29.76 lb 37.5 lb
Weight   without exchanger (4) – lb 24.25 lb 31,96 lb
