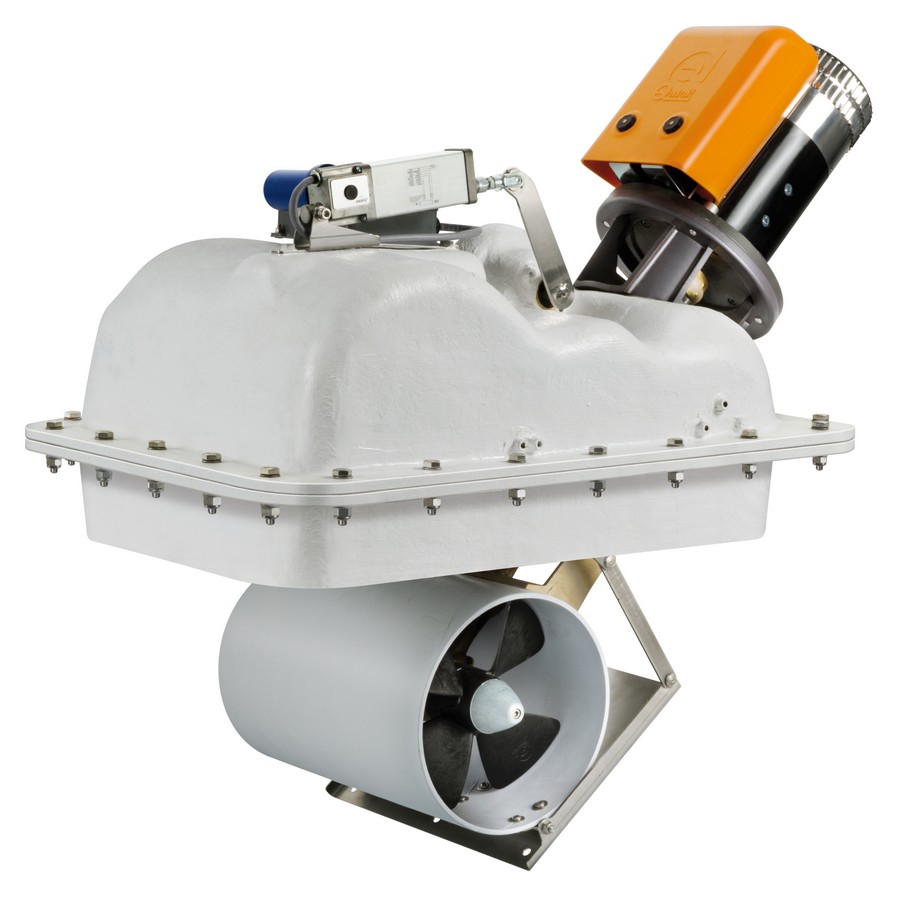

BTR 250 Retractable Bow Thruster

$17,140.00$19,035.00

Clear

Description

The BTR composed of high quality Nibrall and AISI 316 Stainless steel is a reliable, easy and safe retractable bow thruster system for your boat. This unit has the presence of a separate counter flange from the systems supporting structure which makes the installation of the entire system easy, safe and compliant to current regulations on joint requirements. Some additional safety features are the engine is joined to the structure inside of the keel, there is a single moving body crossing the in-out barrier, there is protection against mechanical overloading caused by accidental impacts when the system is open, and there is protection against galvanic corrosion by means of sacrificial anodes.****PURCHASE OF THE FLANGE IS NECESSARY FOR THE INSTALLATION****

Additional information

Weight N/A
Dimensions 5 × 5 × 5 in
Kilogram-Force

120 KGF, 140 KGF, 240 KGF

Voltage

24V

Specifications

Model
BTQR 250-120 BTR 250-140 BTR 250-240
Propulsion system 2 Counter rotating 2 Counter rotating 2 Counter rotating
Ø Tunnel 9,85″ 9,85″ 9,84″
Motor power 6,5 KW 8 KW 10 KW
Voltage 12 V 24 V 24 V 24 V
Section of wire 2 x 95mm2 (2 x AWG 3/0) 120mm2 2 x (AWG 4) 120mm2 (2 x AWG 4/0) 185mm2 (2 x AWG 350MCM)
Fuse 2 x 355 A 400 A 400 A 2 x 300 A
Thrust 120 kgf (264 lbs) 120 kgf (264 lbs) 140 kgf (308 lbs) 240 kgf (529 lbs)
Weight 182 lb 182 lb 188 lb 200 lb
