Tim CS

$115.00

SKU: FASP3512X02CA00 Categories: , ,

Description

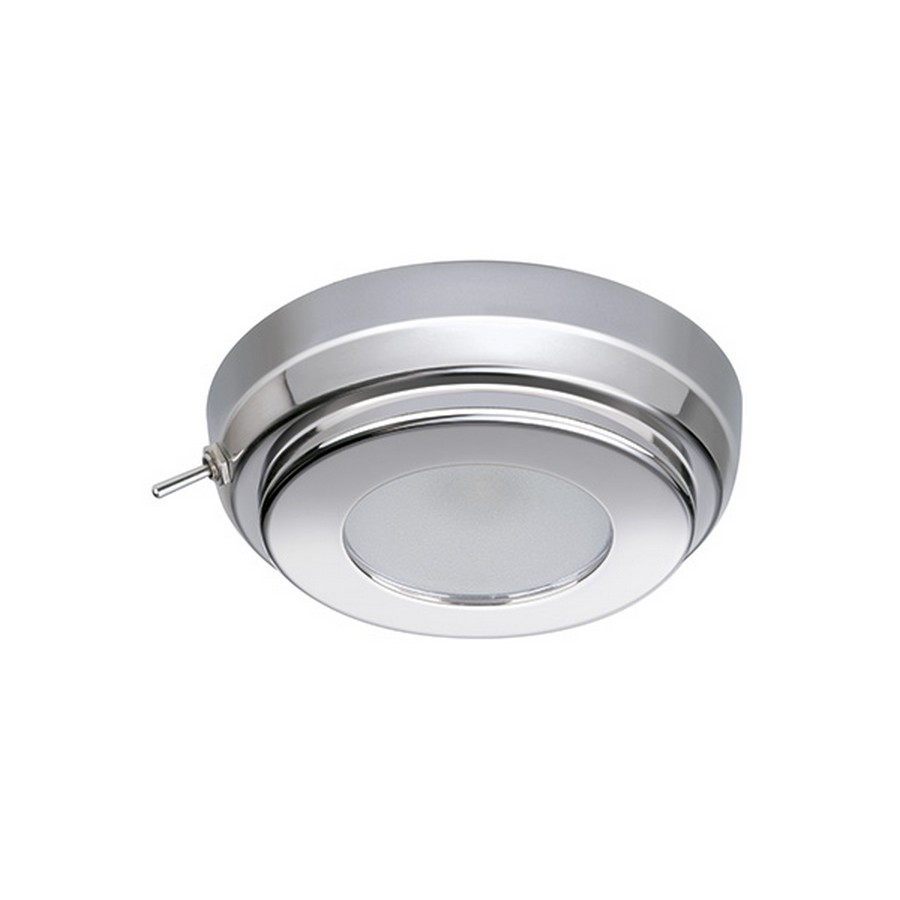

The Tim CS is an IP40 recessed LED surface mounted downlight. It has a 70mm round trim composed of plastic plated in chrome or white. It is available in a warm white led bulb color. It has a satin diffuser and can be installed on the wall or ceiling.

Additional information

Dimensions 0.25 × 0.25 × 0.25 in
Options

Tim CS LED Warm 2W 1030V S.Steel

Specifications

Specifications

Power type Constant Voltage
Light source HIGH LUMINOSITY
Supply 10 ÷ 30 V
Power consumption 2 W
Current consumption 0.09 A @ 24V
Average lifetime 50,000 h
Dimmable Yes
IP security degree 40

Dimensions

Frame Ø 3 9/16″
Recess 55/64″ (Thickness)

Design

Frame material AISI 316 S.Steel
Finish WHITE 9010 / CHROMED
Light colors WARM WHITE
Mounting SCREWS

Photometric data


 WARM WHITE 2900-3100 °K
Angle 100°
Light flow 115 lm
Efficiency 58 lm/W
Light Beam – distance 1 m Ø 2.43 m 44.4 lux
Light Beam – distance 2 m Ø 4.85 m 10.2 lux
Light Beam- distance 3 m Ø 7.28 m 4.5 lux

Certifications

Dimensions in mm (inches)

DIMMERS

ZDIM100

ZDIM100

ZDIM100

Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
