Erica 3

$400.00

Clear

Description

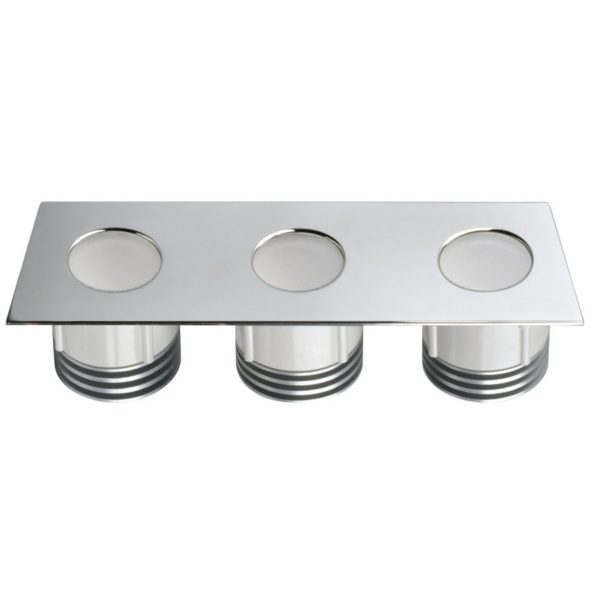

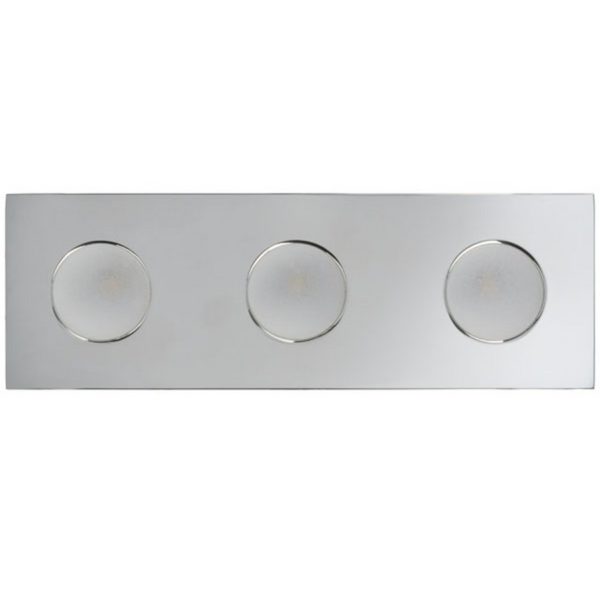

The Erica is an IP65 Power LED downlight. It has a 150mm x 50mm rectangular trim composed of AISI 316 stainless steel and frosted lens. It is available in daylight and warm led bulb colors. It has a 1, 2 and 3 light option.

Additional information

Weight N/A
Dimensions 0.25 × 0.25 × 0.25 in
Bulb Color

Day, Warm

Trim Finish

Satin, Stainless Steel

Specifications

Specifications

Power type Constant Voltage
Light source 3 x POWER LED
Supply 10 ÷ 30 V
Power consumption 6 W
Current consumption 0.25 A @ 24 V
Average lifetime 50,000 h
Dimmable Yes
IP security degree 65

Dimensions

Frame RECT. 1 31/32″ X 5 29/32″
Recess 1 3/8″
Hole Ø 1 9/16″

Design

Frame material AISI 316 S/STEEL
Finish CHROMED / SATIN
Light colors DAYLIGHT / WARM WHITE
Mounting SPRINGS

Photometric data

 DAYLIGHT 3800-4200 °K
Angle 40°
Light flow 241 lm
Efficiency 40 lm/W
Light Beam- distance 1 m Ø 0.7 m 354.6 lux
Light Beam- distance 2 m Ø 1.4 m 88.6 lux
Light Beam- distance 3 m Ø 2.1 m 39.4 lux

 WARM WHITE 2800-3100 °K
Angle 40°
Light flow 211 lm
Efficiency 35 lm/W
Light Beam – distance 1 m Ø 0.7 m 311.1 lux
Light Beam- distance 2 m Ø 1.4 m 77.8 lux
Light Beam- distance 3 m Ø 2.1 m 34.6 lux

Certifications

LED Protection: Spike protected ± 500V Polarity sensitive: YES
