Edwin V 4W IP66

$185.90 – $194.70

Bulb Color

Trim Finish

Clear

SKU: Edwin V Categories: LED Lighting, Lighting, Recessed Downlights

Description

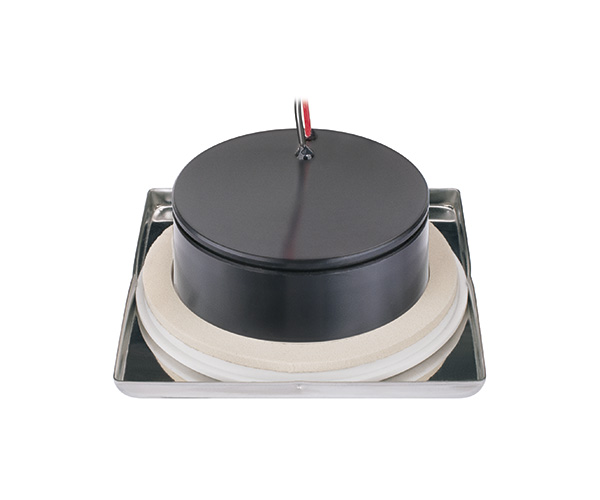

The Edwin V is an IP66 recessed Power LED downlight. It has a 72mm square trim composed of AISI 316 stainless steel and a frosted lens.

Additional information

Weight	N/A
Dimensions	0.25 × 0.25 × 0.25 in
Bulb Color	Warm, Red, Daylight, Warm/Red
Trim Finish	White, Satin, Stainless Steel

Specifications

Specifications

Power type	Constant Voltage
Light source	HIGH LUMINOSITY
Supply	10 ÷ 30 V
Power consumption	4 W
Current consumption	0.17 A @ 24V
Average lifetime	50,000 h
IP security degree	66

Dimensions

Frame	Ø 2 53/64″
Recess	5 1/64″
Hole	Ø 2 1/8″

Design

Frame material	AISI 316 S/STEEL
Finish	MIRROR POLISHED / SATIN / WHITE 9010
Light colors	DAYLIGHT / WARM WHITE
Mounting	SCREWS

Photometric data

DAYLIGHT	3800-4200 °K
Angle	95°
Light flow	190 lm
Efficiency	48 lm/W
Light Beam – distance 1 m	Ø 2.11 m	87.2 lux
Light Beam- distance 2 m	Ø 4.21 m	21.8 lux
Light Beam- distance 3 m	Ø6.32 m	9.7 lux

WARM WHITE	2800-3100 °K
Angle	95°
Light flow	180 lm
Efficiency	45 lm/W
Light Beam – distance 1 m	Ø 2.11 m	80.7 lux
Light Beam- distance 2 m	Ø 4.21 m	20.2 lux
Light Beam- distance 3 m	Ø 6.32 m	9 lux

Certifications

Dimensions in mm (inches)

DIMMERS

LDIM BUS 2CH

LDIM BUS 2CH

Basic item, for power and functionality alternatives, consult section ACCESSORIES

LED Protection: Spike protected ± 500V Polarity sensitive: YES
