Demetra 7W

$435.00

Clear

Description

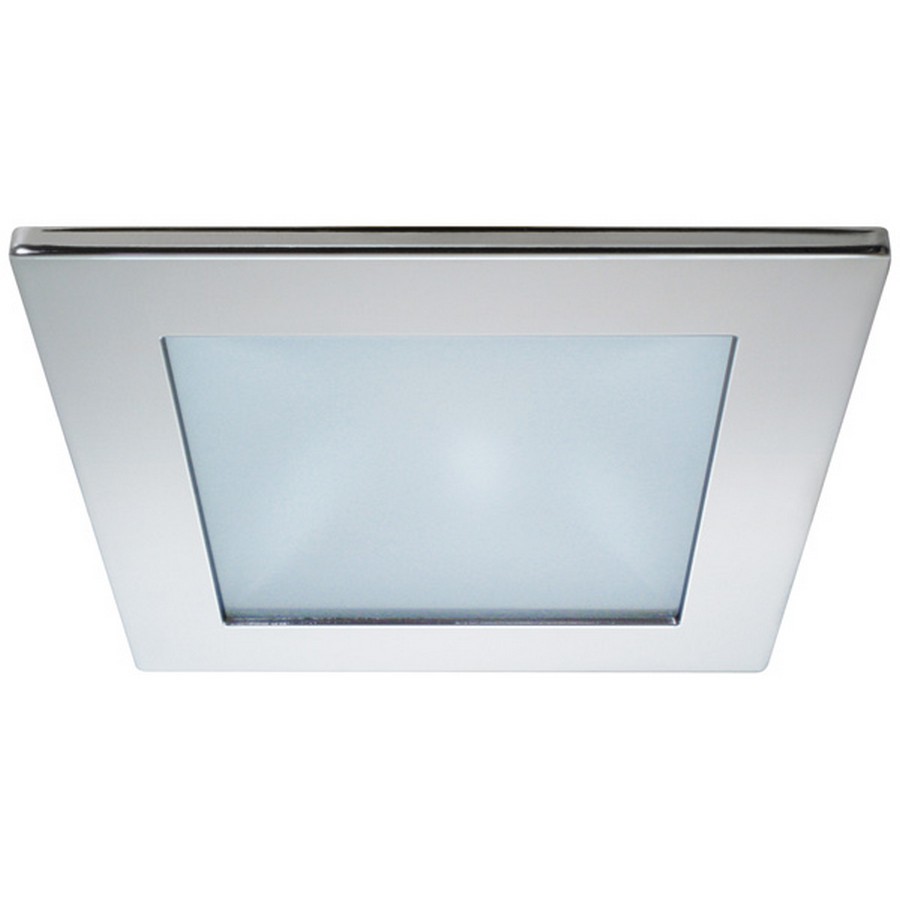

The Demetra is an IP65 recessed Power LED downlight. It has a 112mm square trim composed of AISI 316 stainless steel and a frosted lens. It is available with a daylight or warm led bulb.

Additional information

Weight N/A
Dimensions 0.25 × 0.25 × 0.25 in
Light Color

Warm, Daylight

Trim

Stainless Steel

Specifications

Specifications

Power type Constant Voltage
Light source 1 x POWER LED
Supply 10 ÷ 30 V
Power consumption 7 W
Current consumption 0.29 A @ 24V
Average lifetime 50,000 h
IP security degree 65

Dimensions

Frame SQ. 4 13/32″
Recess 2 9/64″
Hole SQ. 3 11/32″

Design

Frame material AISI 316 S/STEEL
Finish MIRROR POLISHED / SATIN / WHITE 9010
Light colors DAYLIGHT / WARM WHITE
Mounting SCREWS

Photometric data


 DAYLIGHT 3800-4200 °K
Angle 85°
Light flow 324 lm
Ligthness – distance 1 m Ø 1.84 m 154.8 lux
Ligthness – distance 2 m Ø 3.68 m 38.7 lux
Ligthness – distance 3 m Ø 5.51 m 17.2 lux

 WARM WHITE 2800-3100 °K
Angle 85°
Light flow 311 lm
Light Beam- distance 1 m Ø 1.84 m 148.8 lux
Light Beam- distance 2 m Ø 3.68 m 37.2 lux
Light Beam – distance 3 m Ø 5.51 m 16.5 lux

Certifications

Dimensions in mm (inches)

DIMMERS

LDIM BUS 2CH

LDIM BUS 2CH

LDIM BUS 2CH

Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
