Description

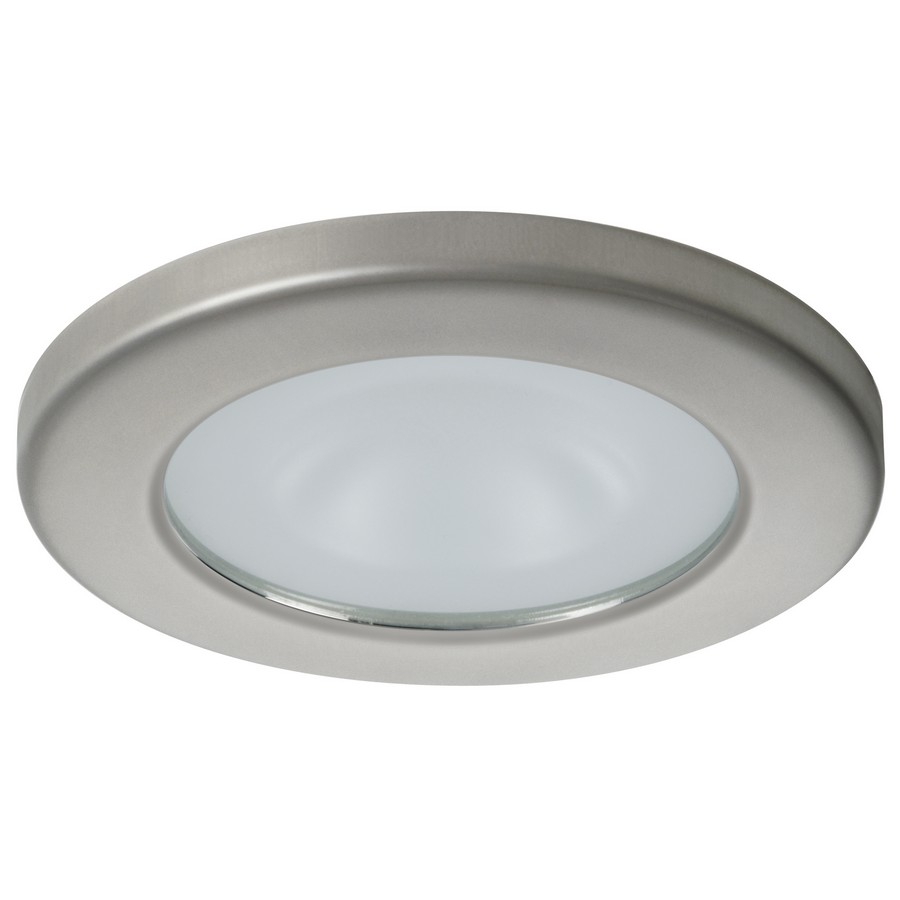

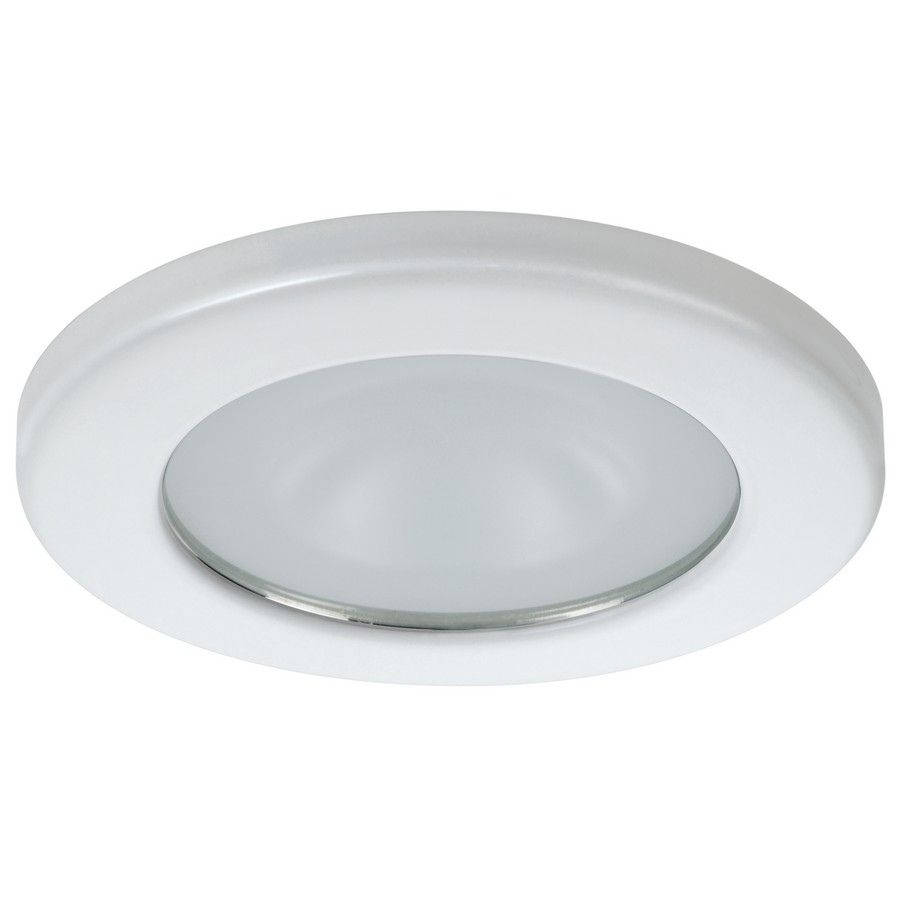

The Chiara is an IP66 recessed Power LED downlight. It has an 87mm round trim composed of AISI 316 stainless steel and a frosted lens. It is available with a daylight or warm led bulb.
Specifications
Specifications
| Power type |
Constant Voltage |
| Light source |
0 x POWER LED |
| Supply |
10 ÷ 30 V |
| Power consumption |
4 W |
| Current consumption |
0.16 A @ 24V |
| Average lifetime |
50,000 h |
| Dimmable |
Yes |
| IP security degree |
66 |
Dimensions
| Frame |
Ø 3 15/32″ |
| Recess |
1 7/64″ |
| Hole |
Ø 2 9/16″ |
Design
| Frame material |
AISI 316 S/STEEL |
| Finish |
MIRROR POLISHED / SATIN / WHITE 9010 |
| Light colors |
DAYLIGHT / WARM WHITE |
| Mounting |
SCREWS |
Photometric data
| DAYLIGHT |
3800-4200 °K |
| Angle |
40° |
| Light flow |
266 lm |
| Light Beam – distance 1 m |
Ø 0.73 m |
266.2 lux |
| Light Beam- distance 2 m |
Ø 1.45 m |
66.5 lux |
| Light Beam- distance 3 m |
Ø 2.18 m |
29.6 lux |
| WARM WHITE |
2800-3100 °K |
| Angle |
40° |
| Light flow |
252 lm |
| Light Beam – distance 1 m |
Ø 0.73 m |
241.8 lux |
| Light Beam- distance 2 m |
Ø 1.45 m |
60.5 lux |
| Light Beam- distance 3 m |
Ø 2.18 m |
26.9 lux |
Certifications
Dimensions in mm (inches)
DIMMERS
LDIM BUS 2CH
LDIM BUS 2CH
Basic item, for power and functionality alternatives, consult section ACCESSORIES
LED Protection: Spike protected ± 500V Polarity sensitive: YES
