Tess
Dear Customer,
To place an order or request information, please contact us.
We will put you in touch with the distributor nearest you.
Description

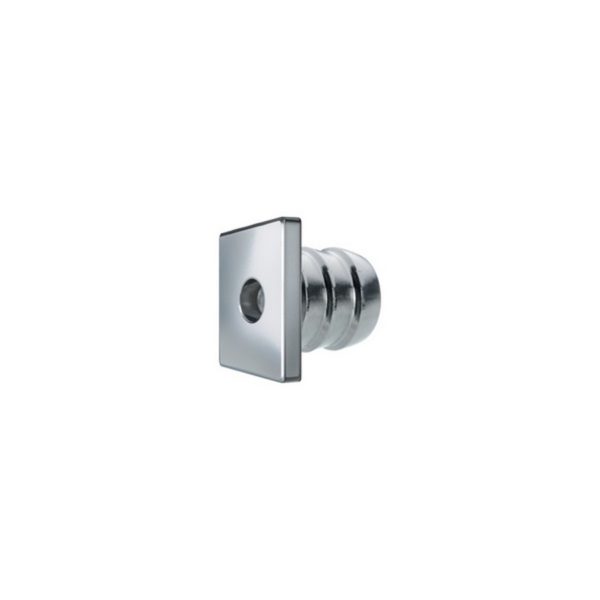

The Tess is an IP65 LED courtesy light. It has a 15.5mm square trim composed of AISI stainless steel. This unit is available in warm, daylight, red and blue LED bulb colors.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 0.25 × 0.25 × 0.25 in |
| Light Color | Blue, Daylight, Red, Warm |
| Trim | Satin, Stainless, White |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | 1 x LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 0.48 W @ 24 V |
| Current consumption | 0.02 A |
| Average lifetime | 50,000 h |
| IP security degree | 65 |

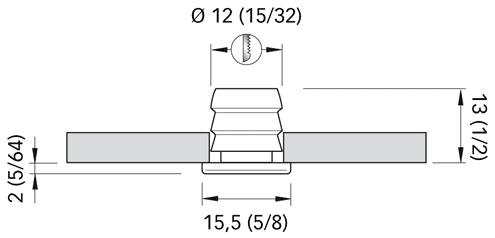

Dimensions
| Frame | SQ. 5/8″ |
| Recess | 1/2″ |
| Hole | Ø 15/32″ |
Design
| Frame material | AISI 316 S/STEEL |
| Finish | MIRROR POLISHED / SATIN / WHITE 9010 |
| Light colors | DAYLIGHT / WARM WHITE / RED / BLU |
| Mounting | ADHESIVE |
Certifications
   |
LED Protection: Spike protected ± 500V Polarity sensitive: NO
