Description

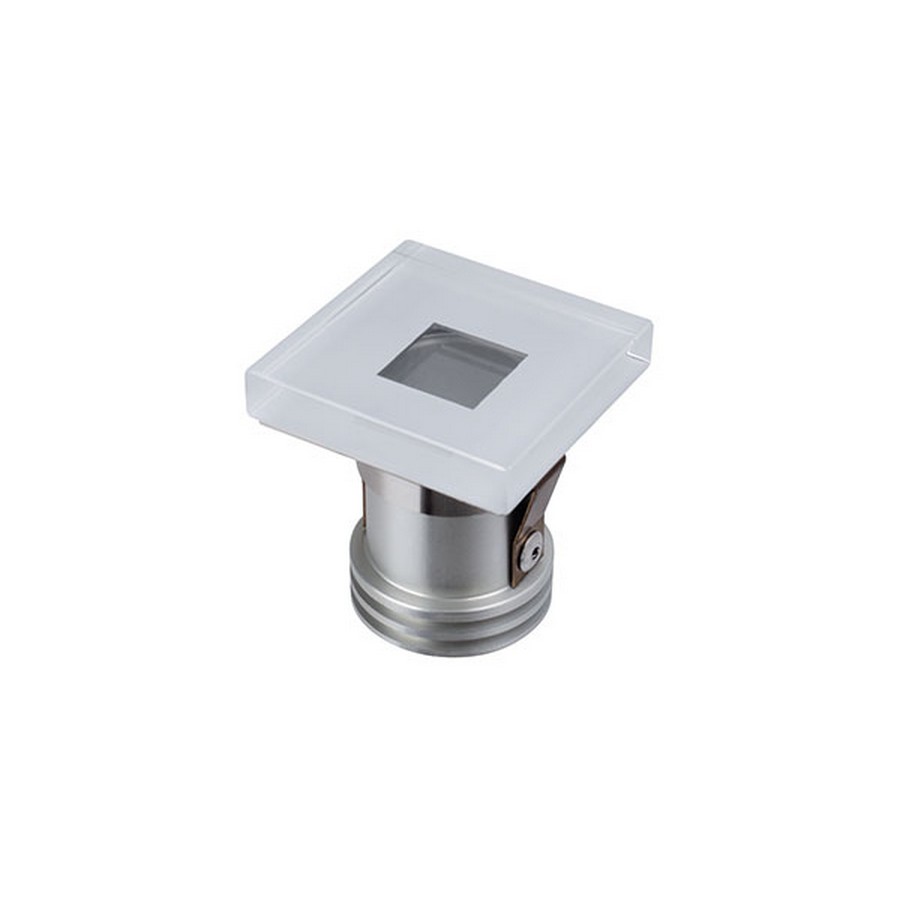

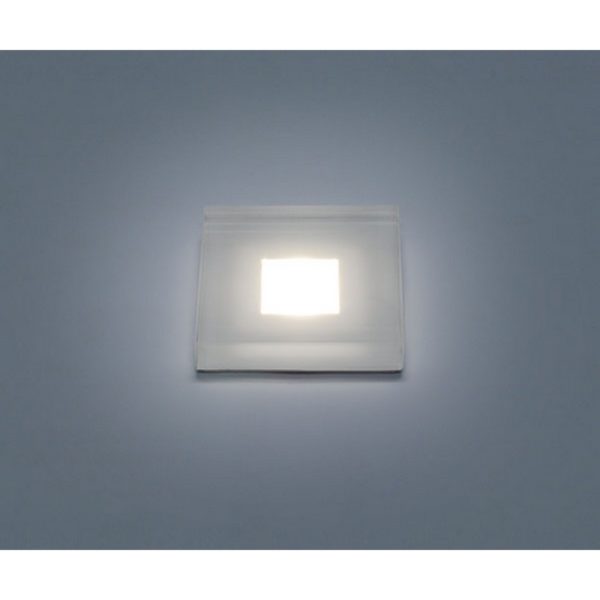

Square built-in courtesy light made with 316 AISI stainless steel and temperate glass.The exclusive design, effective illumination and optimal chromatic yield made the product particularly elegant and refined.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | 0.25 × 0.25 × 0.25 in |
| Light Color | Daylight/Warm, Warm/White |
Specifications
Specifications
| Power type | Constant Voltage |
| Light source | 1 x LED |
| Supply | 10 ÷ 30 V |
| Power consumption | 0.125 W @ 24 V |
| Average lifetime | 50,000 h |
| IP security degree | 65 |
Dimensions
| Frame | SQ. 1 9/16″ |
| Recess | 34mm |
| Hole | Ø 1 3/16″ |
Design
| Frame material | AISI 316 S/STEEL |
| Finish | TEMPERED GLASS |
| Light colors | DAYLIGHT / WARM WHITE |
| Mounting | SCREWS |
Certifications
   |
Dimensions in mm (inches)
LED Protection: Spike protected ± 500V Polarity sensitive:
